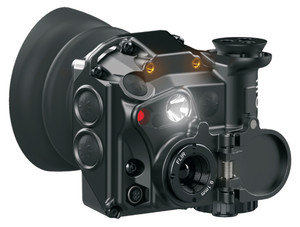

TILO-6 Thermal Imaging Device

Meet the TILO-3™s's big brother, the TILO-6™.  TILO™ is the smallest thermal imaging goggle in the world with the greatest flexibility and the TILO-6™ gives you way more performance and more accesories.  It also functions as a white-light and red-light headlamp and IR illuminator.   It has a thermal resolution of <60mK and now delivers even higher-contrast images even under poor ambient conditions. The TILO-6™ has the high quality imagery can often only be found in the much larger cooled thermal imaging devices.

Use your TILO-6™ as a hand-held, head or helmet mounted* device or even mount it on various optics* or tripods* using available adpators.

TILO-3™ also offers the ability to run from a single of CR123, 2 x CR123 extended battery* case or an external power source* and can output video to a display or recorder in PAL or NTSC formats*.

The professional version of the TILO-6Z™ also has a much higher frame rate of 60Hz. This means that the image is much more stable and there is almost no delay between sensor and screen display.

If you think the new NVG's are good, you haven't seen the world thorugh a TILO-6™ Thermal Imager!

Available in Black, Green and Red for emergency services use or contact us for a full brochure.

IMPORTANT: Potential purchasers will be required to complete an End User Certificate before delivery approval.

Technical specifications:

• 640 x 512 pixel 60Hz Sensor resolution microbolometer
• <60mK temperature resolution
• Application: –30° to +60°C / Storage –40° to +80°C
• Water protection: IP68
• Impact protection: MIL 810F 516 IV (26 falls from 1.22m)
• Video Output: PAL/NTSC
• FOV: horizontal 24° / vertical 19°
• View in White, Black, Red, Green, Hot or Cold, Rainbow, Ironbow, Globow and Hottest colour palettes
• Dimensions:
  • Length: 58mm
  • Width: 64mm
  • Height: 67mm
• Weight: approx. 128g without accessories
• Screen resolution: 873×500 pixels
• Duration: Up to 3.15hrs on a single CR123
• Materials:
  • Case: Polyamide, cold fracture resistant reinforced with nanotubes
  • sapphire crystal eyepiece cover
  • color: black

All specifications are subject to change without notice.

* Various mounts. cables and adaptors are available seperately.

What's in the Box: TILO-6Z™, eyecup, CR123 battery, cleaning cloth, small hand strap, waterproof carrying case, quick start guide, manual
